We are Manufacturer, Supplier, Exporter of: Hydraulic Tools For Electrical Construction, Hydraulic Crimping Tools, Hydraulic Wire Cutters, Busbar Cutting, Bending, Pushing Tools from Belgaum, Karnataka, India.

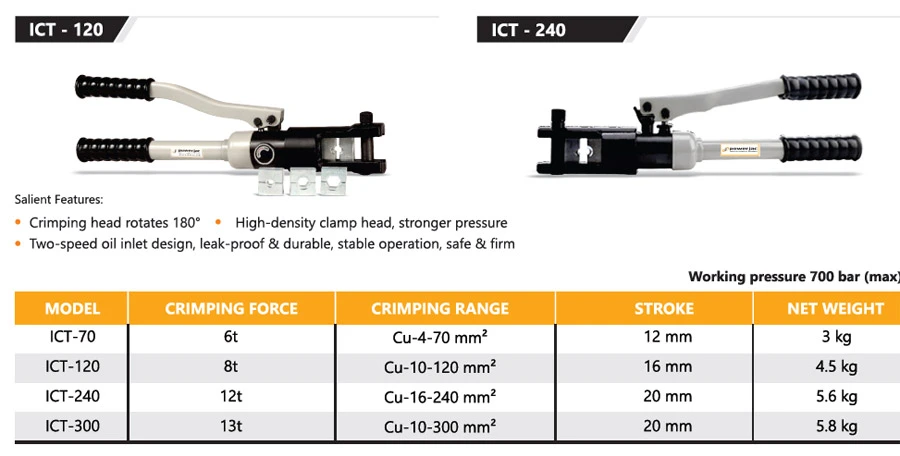

Inbuilt Hand Pump Hydraulic Crimping Tool

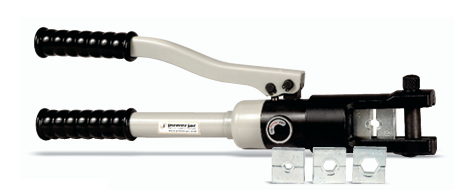

ICT - 120

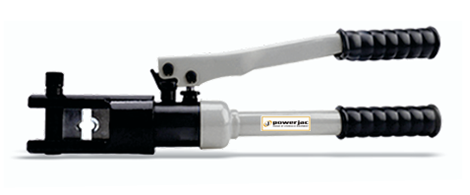

ICT - 240
Salient Features:
Crimping head rotates 180°
High-density clamp head, stronger pressure
Two-speed oil inlet design, leak-proof & durable, stable operation, safe & firm
Working pressure 700 bar (max)
| MODEL | CRIMPING FORCE | CRIMPING RANGE | STROKE | NET WEIGHT |
|---|---|---|---|---|
| ICT-70 | 6t | Cu-4-70 mm² | 12 mm | 3 kg |
| ICT-120 | 8t | Cu-10-120 mm² | 16 mm | 4.5 kg |
| ICT-240 | 12t | Cu-16-240 mm² | 20 mm | 5.6 kg |
| ICT-300 | 13t | Cu-10-300 mm² | 20 mm | 5.8 kg |

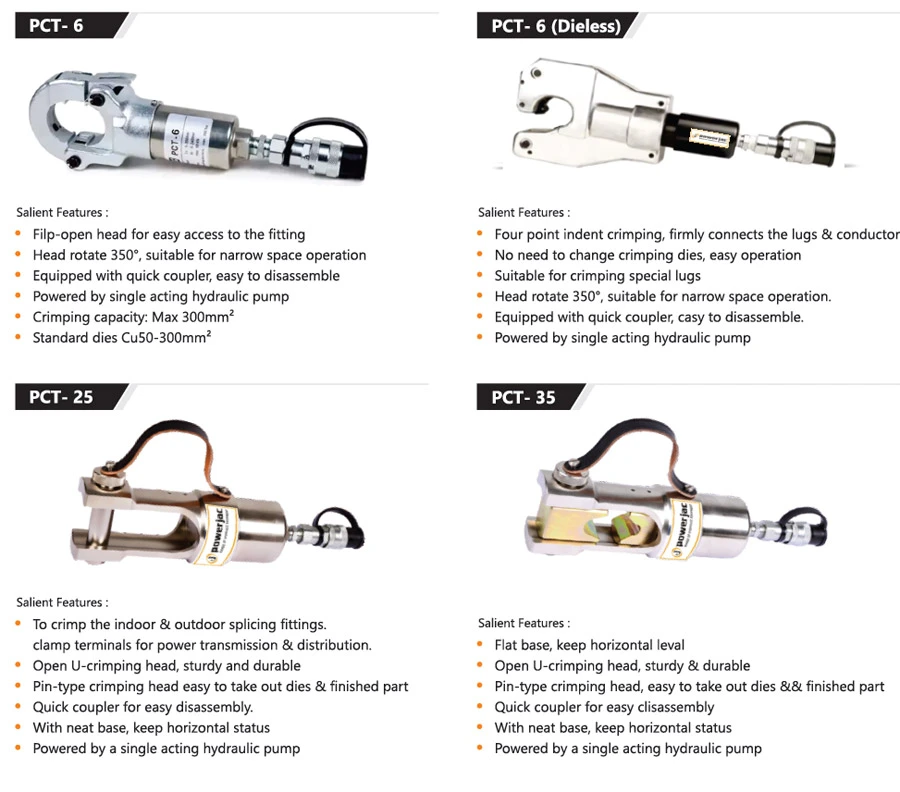

Portable Hydraulic Crimping Tool

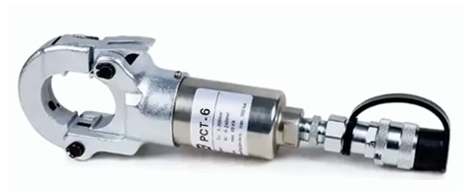

PCT - 6
Salient Features :
Filp-open head for easy access to the fitting
Head rotate 350°, suitable for narrow space operation
Equipped with quick coupler, easy to disassemble
Powered by single acting hydraulic pump
Crimping capacity: Max 300mm²
Standard dies Cu50-300mm²

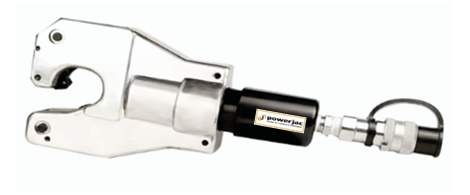

PCT - 6 (Dieless)
Salient Features :
Four point indent crimping, firmly connects the lugs & conductors
No need to change crimping dies, easy operation
Suitable for crimping special lugs
Head rotate 350°, suitable for narrow space operation
Equipped with quick coupler, easy to disassemble
Powered by single acting hydraulic pump

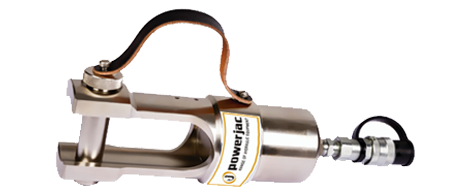

PCT - 25
Salient Features :
To crimp the indoor & outdoor splicing fittings.
Clamp terminals for power transmission & distribution.
Open U-crimping head, sturdy and durable
Pin-type crimping head easy to take out dies & finished part
Quick coupler for easy disassembly
With neat base, keep horizontal status
Powered by a single acting hydraulic pump
PCT - 35
Salient Features :
Flat base, keep horizontal level
Open U-crimping head, sturdy & durable
Pin-type crimping head, easy to take out dies & finished part
Quick coupler for easy disassembly
With neat base, keep horizontal status
Powered by a single acting hydraulic pump
Portable Hydraulic Crimping Tool

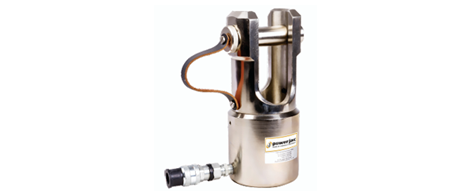

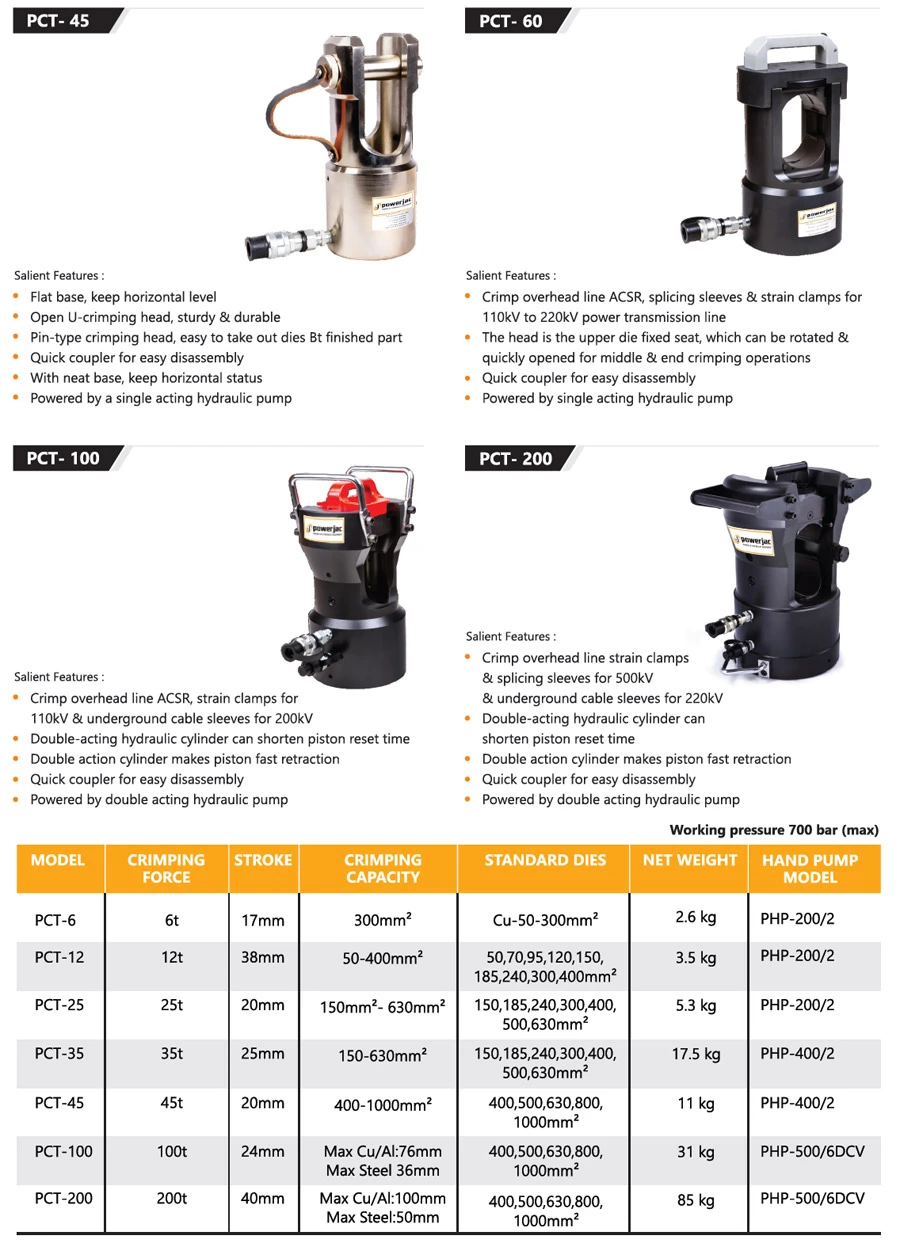

PCT - 45
Salient Features :
Flat base, keep horizontal level
Open U-crimping head, sturdy & durable
Pin-type crimping head, easy to take out dies & finished part
Quick coupler for easy disassembly
With neat base, keep horizontal status
Powered by a single acting hydraulic pump

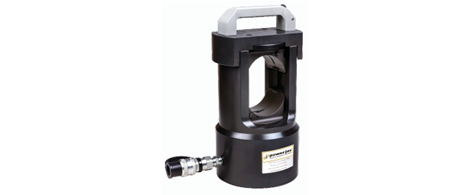

PCT - 60
Salient Features :
Crimp overhead line ACSR, splicing sleeves & strain clamps for 110kV to 220kV power transmission line
The head is the upper die fixed seat, which can be rotated & quickly opened for middle & endcrimpingoperations
Quick coupler for easy disassembly
Powered by single acting hydraulic pump

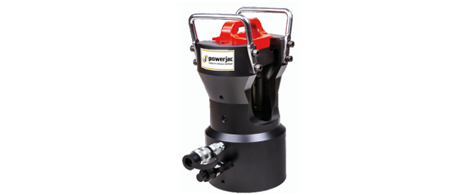

PCT - 100
Salient Features :
Crimp overhead line ACSR, strain clamps for 110kV & underground cable sleeves for 200kV
Double-acting hydraulic cylinder can shorten piston reset time
Double action cylinder makes piston fast retraction
Quick coupler for easy disassembly
Powered by double acting hydraulic pump

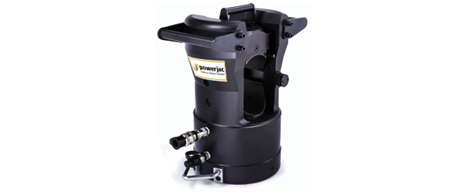

PCT - 200
Salient Features :
Crimp overhead line strain clamps & splicing sleeves for 500kV & underground cable sleeves for 220kV
Double-acting hydraulic cylinder can shorten piston reset time
Double action cylinder makes piston fast retraction
Quick coupler for easy disassembly
Powered by double acting hydraulic pump
Working pressure 700 bar (max)
| MODEL | CRIMPING FORCE | STROKE | CRIMPING CAPACITY | STANDARD DIES | NET WEIGHT | HAND PUMP MODEL |
|---|---|---|---|---|---|---|
| PCT-6 | 6t | 17mm | 300mm² | Cu-50-300mm² | 2.6 kg | PHP-200/2 |
| PCT-12 | 12t | 38mm | 50-400mm² | 50,70,95,120,150,185,240,300,400mm² | 3.5 kg | PHP-200/2 |
| PCT-25 | 25t | 20mm | 150-630mm² | 150,185,240,300,400,500,630mm² | 5.3 kg | PHP-200/2 |
| PCT-35 | 35t | 25mm | 150-630mm² | 150,185,240,300,400,500,630mm² | 17.5 kg | PHP-400/2 |
| PCT-45 | 45t | 20mm | 400-1000mm² | 400,500,630,800,1000mm² | 11 kg | PHP-400/2 |
| PCT-100 | 100t | 24mm | Max Cu/Al:76mm Max Steel 36mm |
400,500,630,800,1000mm² | 31 kg | PHP-500/6DCV |
| PCT-200 | 200t | 40mm | Max Cu/Al:100mm Max Steel:50mm |
400,500,630,800,1000mm² | 85 kg | PHP-500/6DCV |
Hdraulic Cutting Head
Request Quote

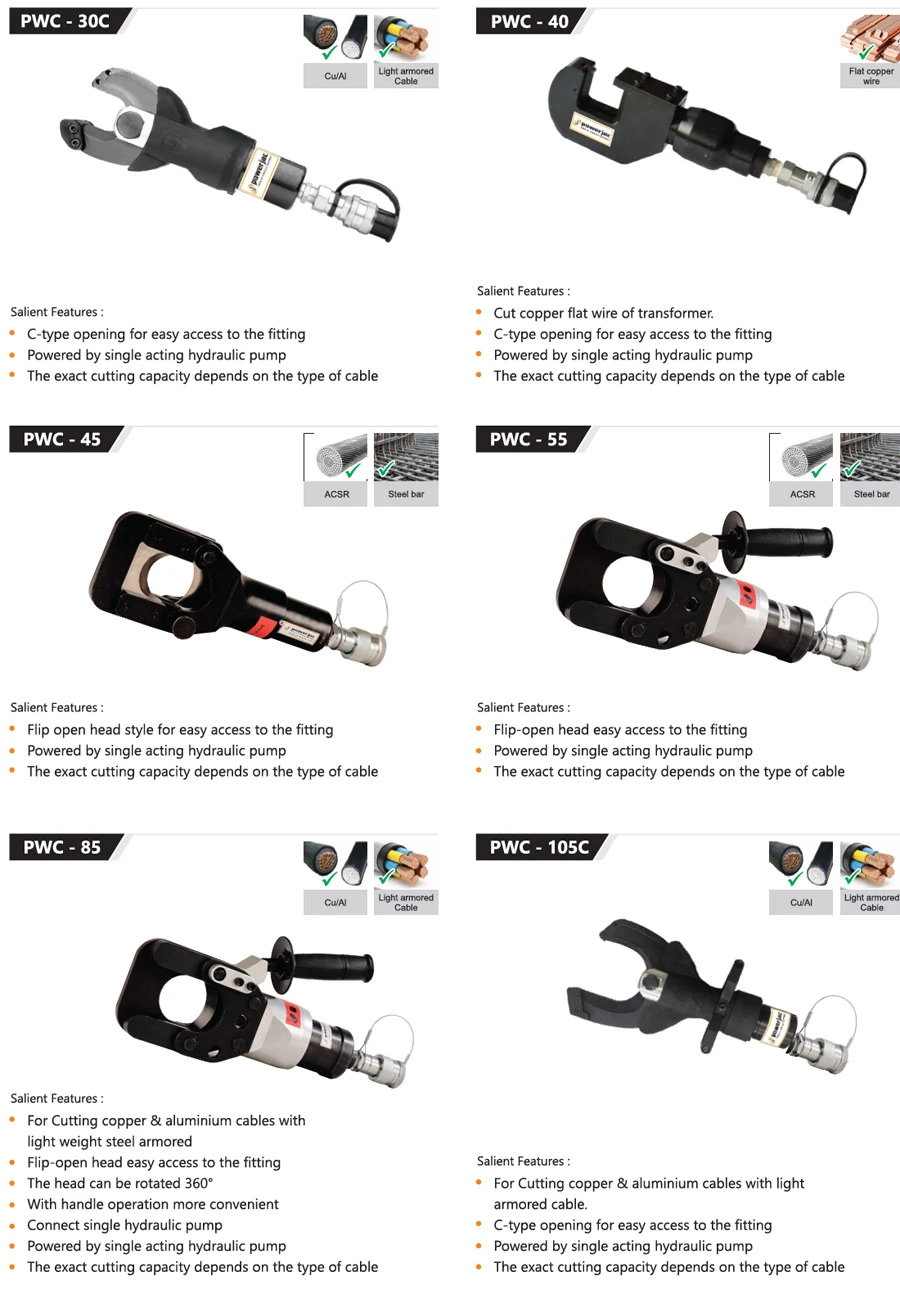

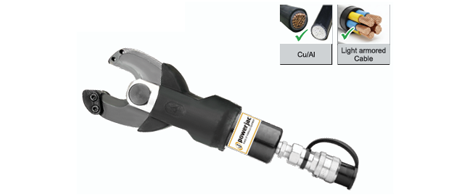

PWC - 30C
Salient Features :
C-type opening for easy access to the fitting
Powered by single acting hydraulic pump
The exact cutting capacity depends on the type of cable

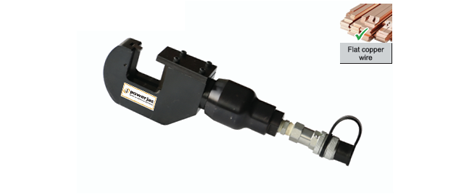

PWC - 40
Salient Features :
Cut copper flat wire of transformer
C-type opening for easy access to the fitting
Powered by single acting hydraulic pump
The exact cutting capacity depends on the type of cable

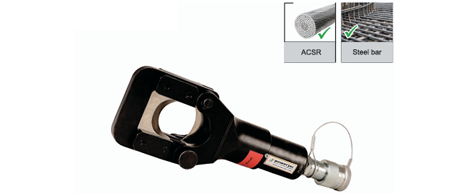

PWC - 45
Salient Features :
Flip open head style for easy access to the fitting
Powered by single acting hydraulic pump
The exact cutting capacity depends on the type of cable

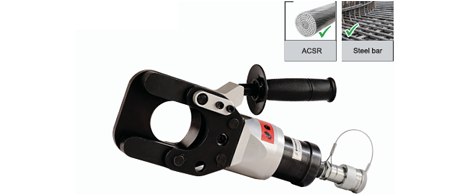

PWC - 55
Salient Features :
Flip-open head easy access to the fitting
Powered by single acting hydraulic pump
The exact cutting capacity depends on the type of cable

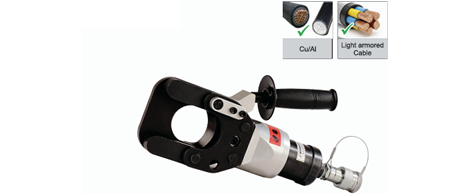

PWC - 85
Salient Features :
For cutting copper & aluminium cables with light weight steel armored
Flip-open head easy access to the fitting
The head can be rotated 360°
With handle operation more convenient
Connect single hydraulic pump
Powered by single acting hydraulic pump
The exact cutting capacity depends on the type of cable

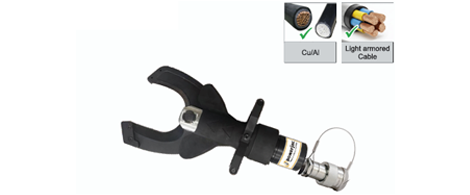

PWC - 105C
Salient Features :
For cutting copper & aluminium cables with light armored cable
C-type opening for easy access to the fitting
Powered by single acting hydraulic pump
The exact cutting capacity depends on the type of cable

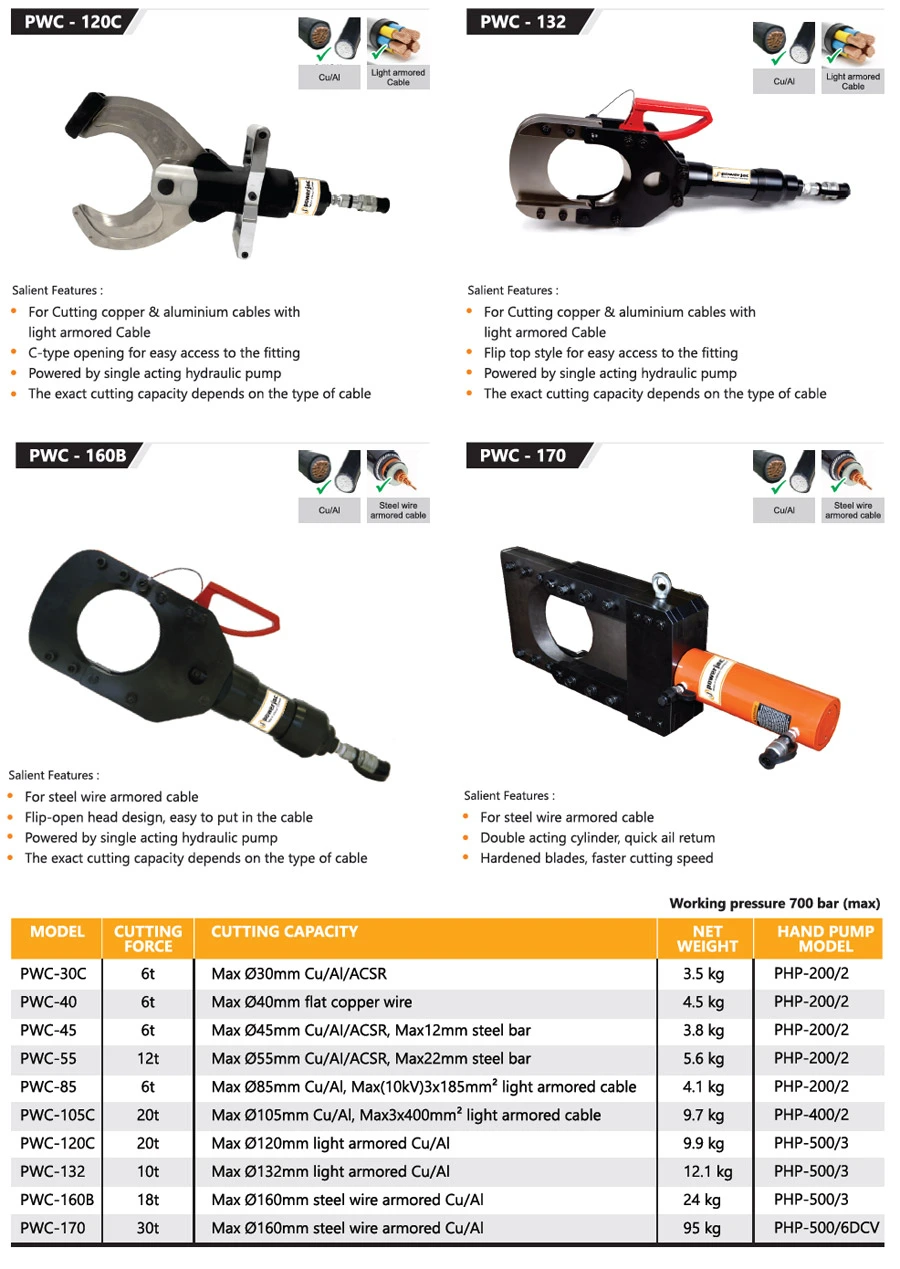

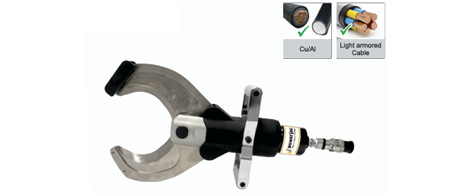

PWC - 120C
Salient Features :
For cutting copper & aluminium cables with light armored cable
C-type opening for easy access to the fitting
Powered by single acting hydraulic pump
The exact cutting capacity depends on the type of cable

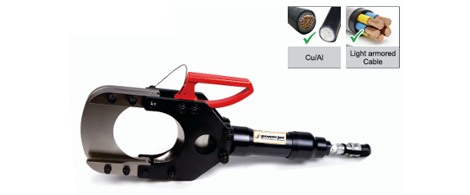

PWC - 132
Salient Features :
For cutting copper & aluminium cables with light armored cable
Flip top style for easy access to the fitting
Powered by single acting hydraulic pump
The exact cutting capacity depends on the type of cable

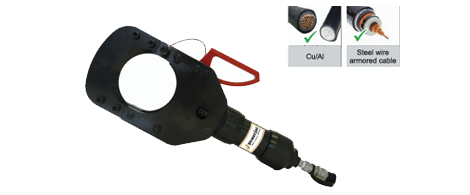

PWC - 160B
Salient Features :
For steel wire armored cable
Flip-open head design, easy to put in the cable
Powered by single acting hydraulic pump
The exact cutting capacity depends on the type of cable

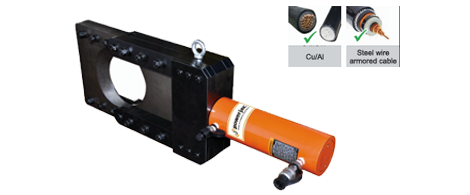

PWC - 170
Salient Features :
For steel wire armored cable
Double acting cylinder, quick oil return
Hardened blades, faster cutting speed
Working pressure 700 bar (max)
| MODEL | CUTTING FORCE | CUTTING CAPACITY | NET WEIGHT | HAND PUMP MODEL |
|---|---|---|---|---|
| PWC-30C | 6t | Max Ø30mm Cu/Al/ACSR | 3.5 kg | PHP-200/2 |
| PWC-40 | 6t | Max Ø40mm flat copper wire | 4.5 kg | PHP-200/2 |
| PWC-45 | 6t | Max Ø45mm Cu/Al/ACSR, Max12mm steel bar | 3.8 kg | PHP-200/2 |
| PWC-55 | 12t | Max Ø55mm Cu/Al/ACSR, Max22mm steel bar | 5.6 kg | PHP-200/2 |
| PWC-85 | 6t | Max Ø85mm Cu/Al, Max(10kV)3x185mm² light armored cable | 4.1 kg | PHP-200/2 |
| PWC-105C | 20t | Max Ø105mm Cu/Al, Max3x400mm² light armored cable | 9.7 kg | PHP-400/2 |
| PWC-120C | 20t | Max Ø120mm light armored Cu/Al | 9.9 kg | PHP-500/3 |
| PWC-132 | 10t | Max Ø132mm light armored Cu/Al | 12.1 kg | PHP-500/3 |
| PWC-160B | 18t | Max Ø160mm steel wire armored Cu/Al | 24 kg | PHP-500/3 |
| PWC-170 | 30t | Max Ø160mm steel wire armored Cu/Al | 95 kg | PHP-500/6DCV |
