Though the specified capacity & stroke of the jacks are designed for maximum safe working, we recommend to use the jacks for 85% of its rated capacity & stroke as safe working practice and for long life of the jacks.

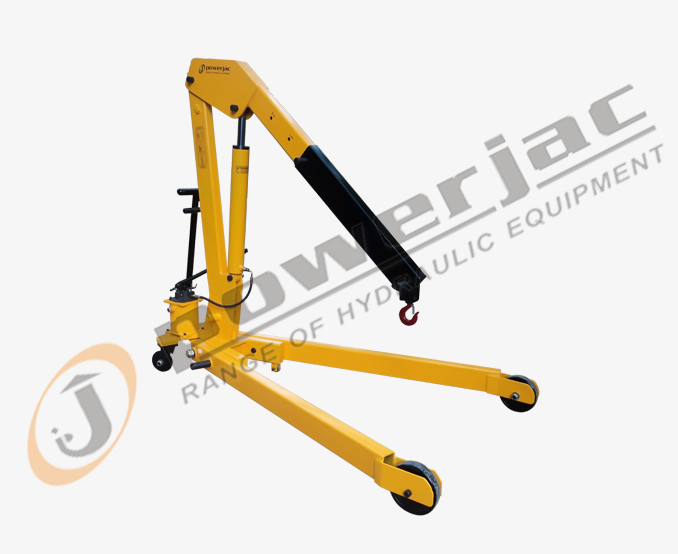

Foldable Hydraulic Mobile Cranes (PMC - Series)
Model |
Capacity |
Stroke |
Max. Lift 'ML' |
Max Dist betw. Legs 'DL' |
Weight (appx) |
tons. |
mm. |
mm. |
mm. |
kgs. |
|
PMC-1 |
1 |
2350 |
300 |
1025 |
95 |
PMC-2 |
2 |
2500 |
300 |
1150 |
125 |
PMC-3 |
3 |
2600 |
300 |
1150 |
135 |
Features / Benefits
Heavy duty, rugged construction.
Foldable legs for portability.
Horizontal boom adjustable and lockable.
Single acting, load return, hand pump operated.
Cylinder honed to a surface finish of 0.4 microns.
Hard chrome plated ram to resist scoring and corrosion.
Front wheels are foxed and rear wheels are 360o movable for easy mobility.
